Hybrid-Electro

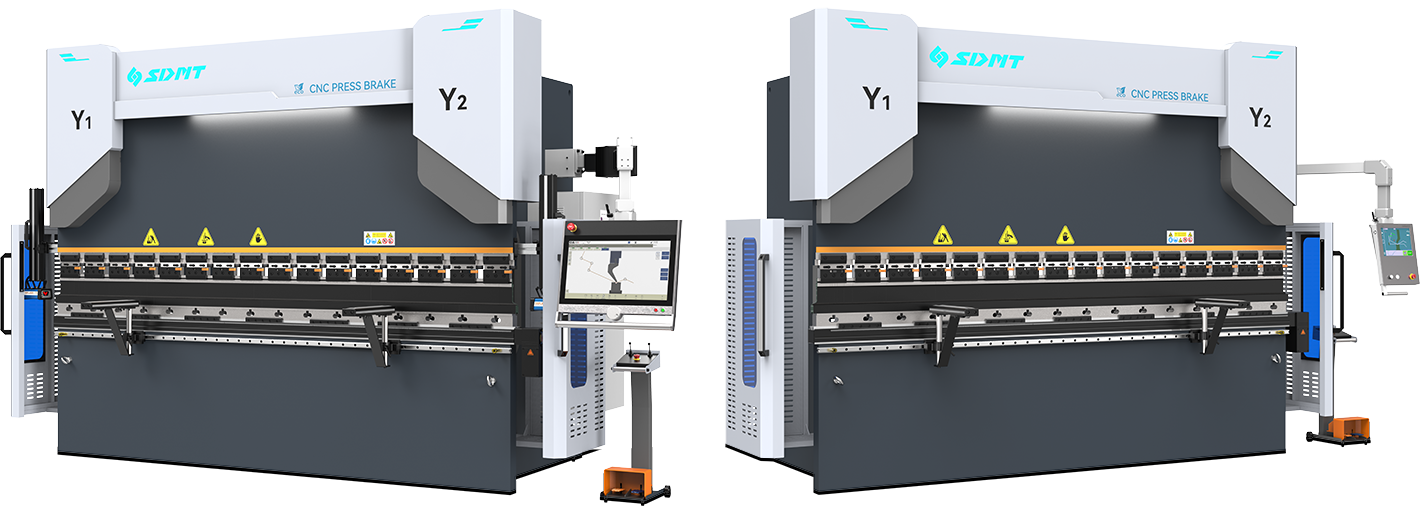

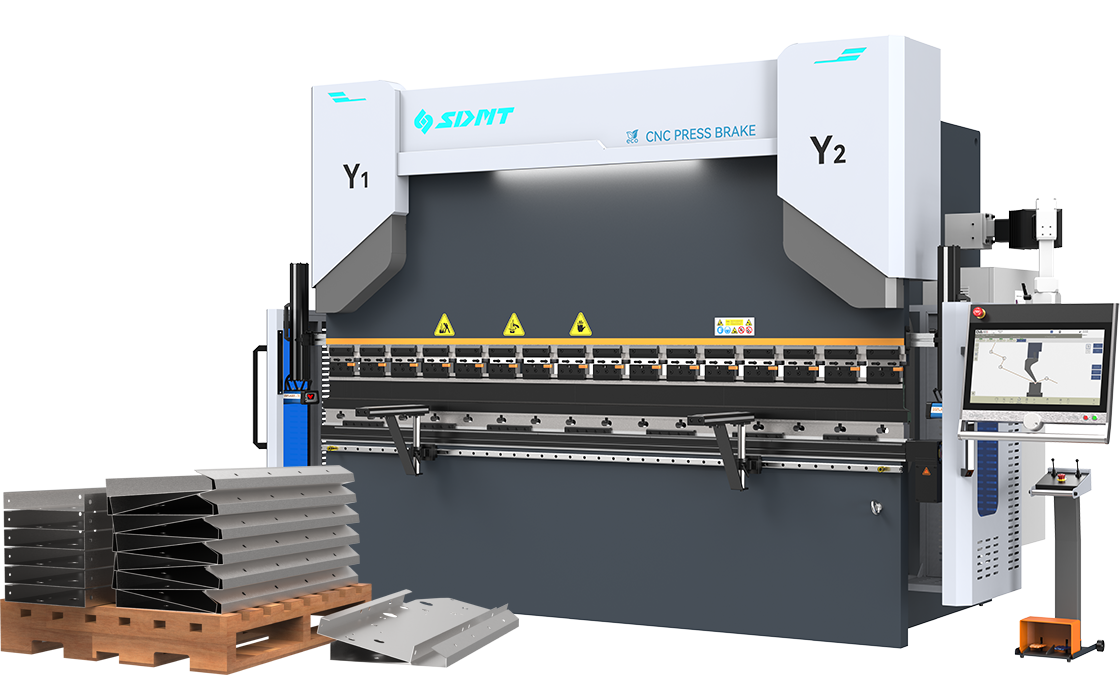

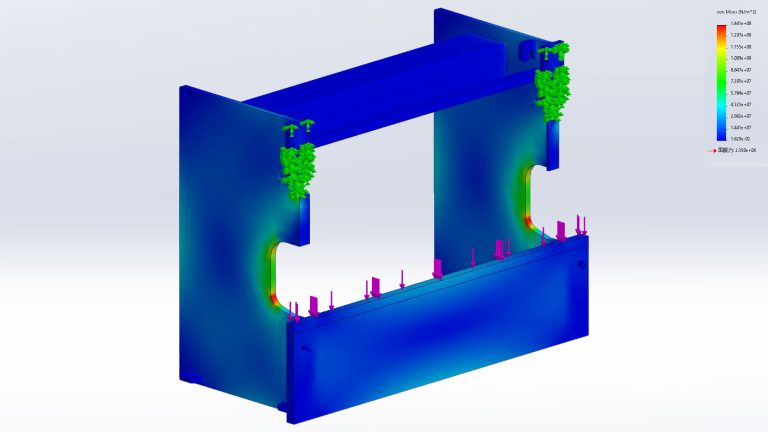

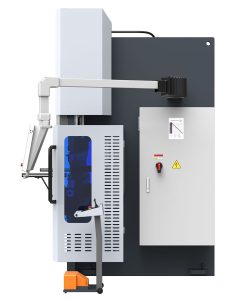

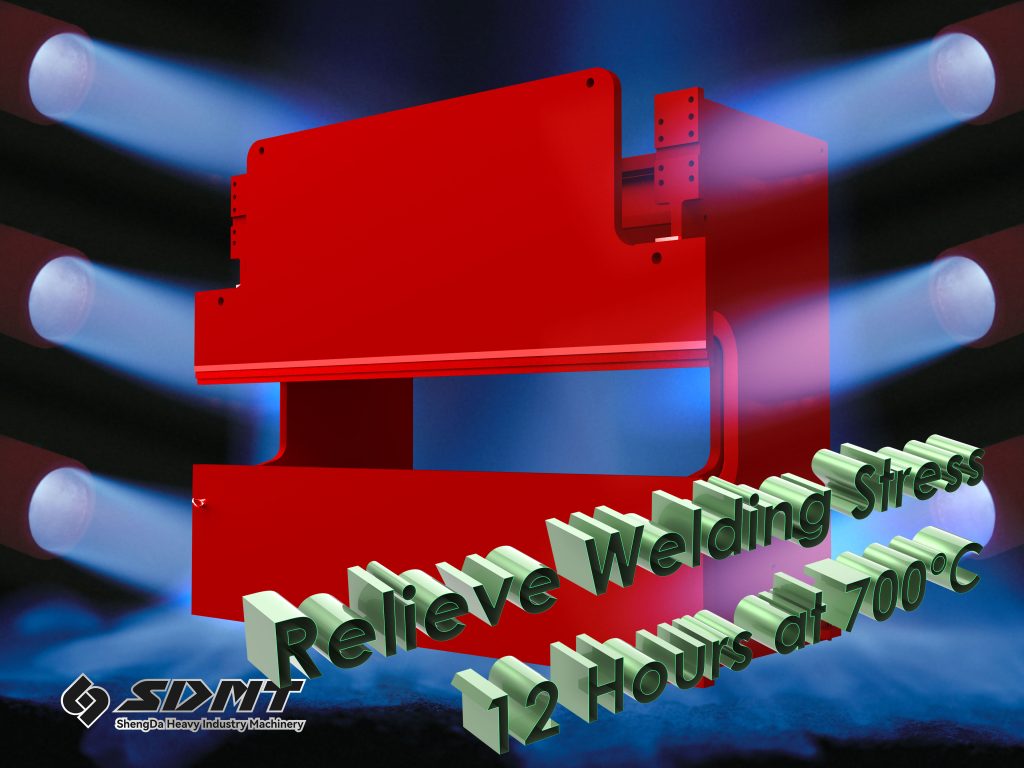

CNC (Double ) Servo Press Brake

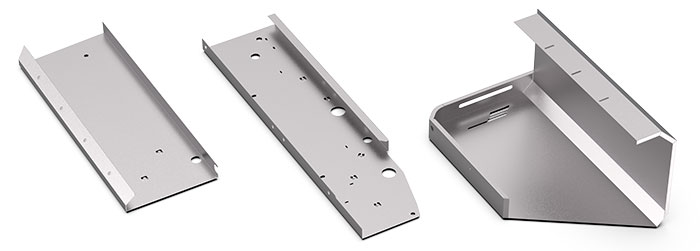

Product Use
Stainless steel and aluminum alloy industry, Rail transit manufacturing industry, Automobile manufacturing industry, Aerospace industry, Medical device industry, Furniture and home appliance manufacturing industry, New power manufacturing industry, Shipbuilding industry,

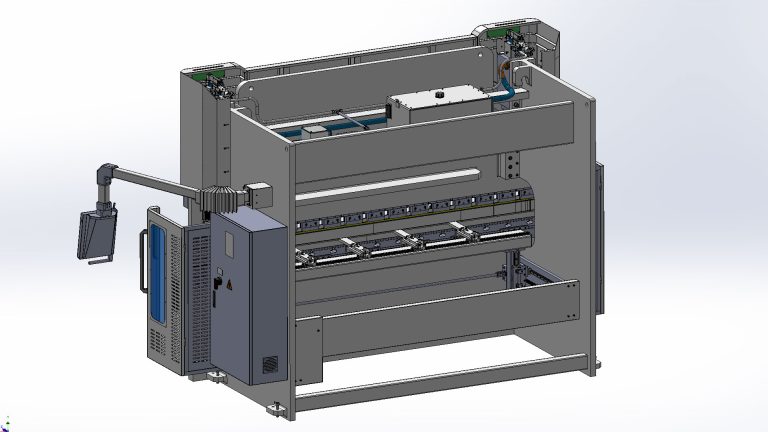

Product Introduction
Mold Clamping, Upper And Lower Molds, Workbench, Deflection Compensation, Front Material Support, Safety Protection
About Lower Molds (Optional)

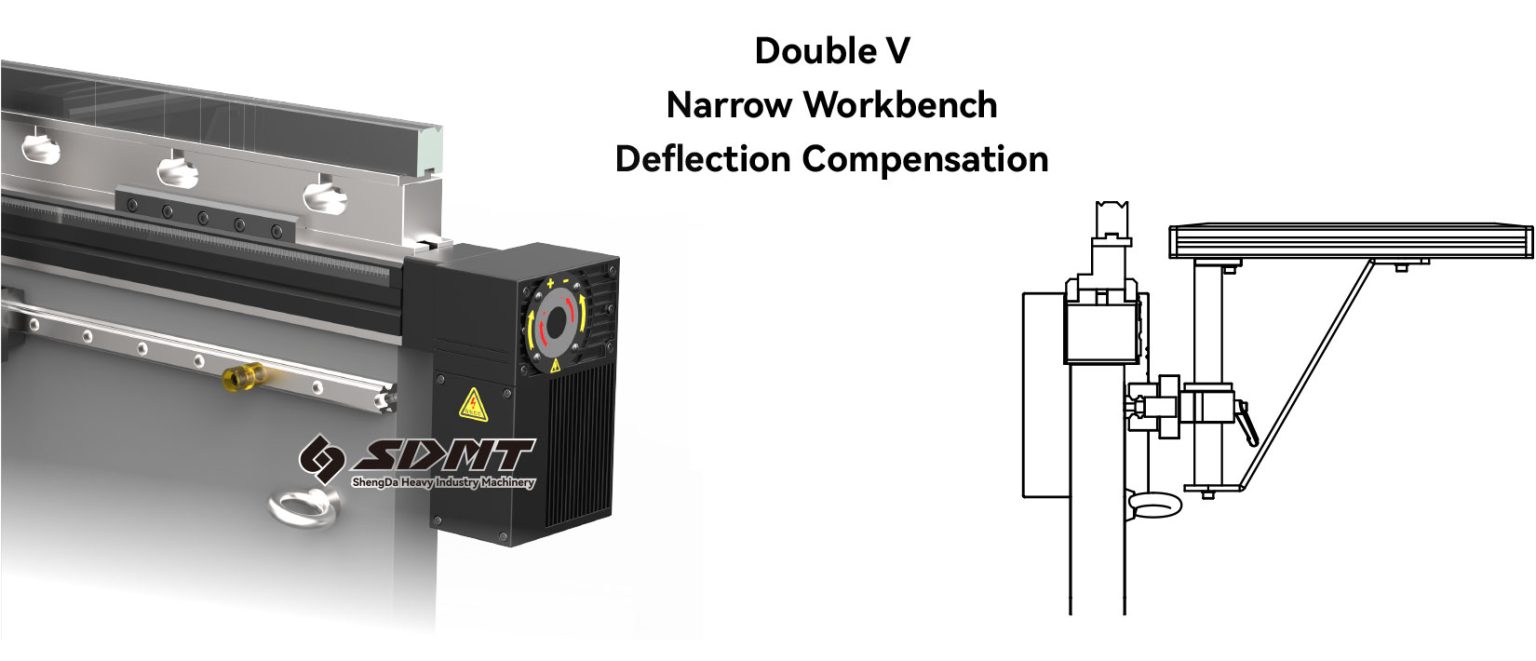

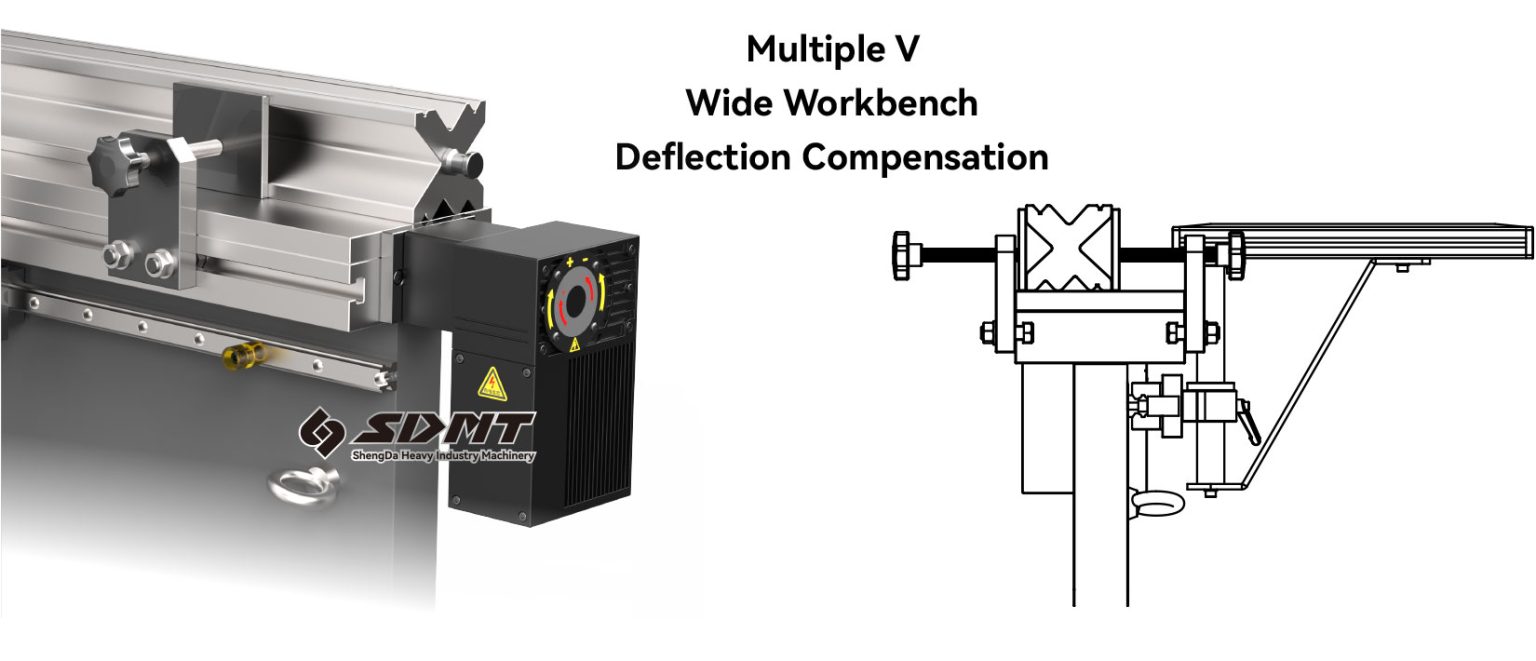

Lower Molds, Workbench, Deflection Compensation, Front Material Support
About Clamping (Optional)

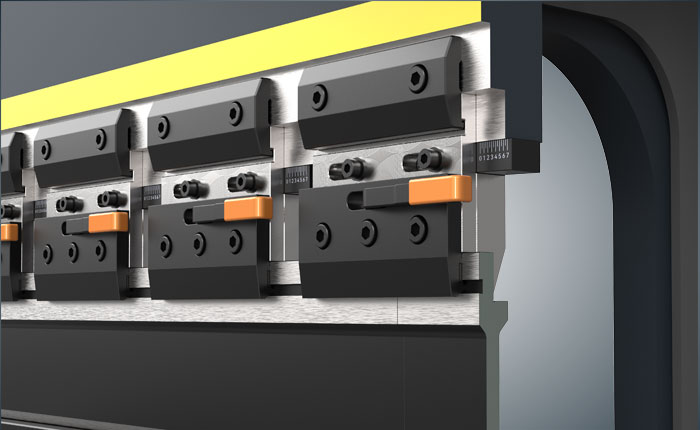

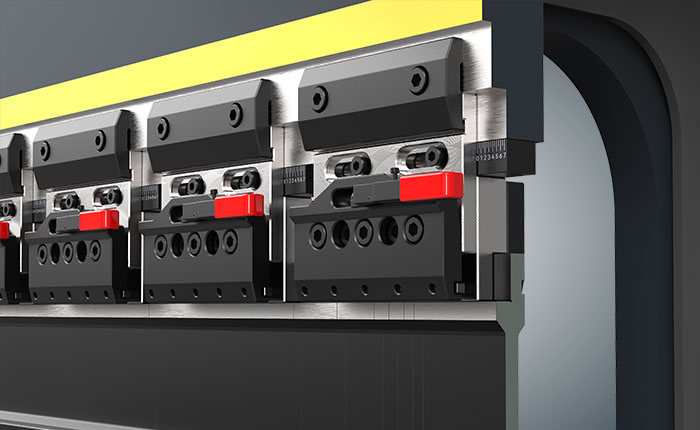

Mold Double-side Clamping
Release the mold at once; Insert the mold from the side or bottom; Support reverse installation of the mold; Anti-drop structure.

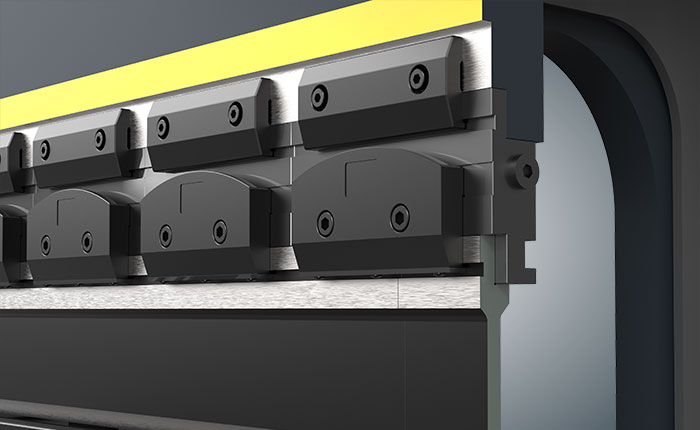

Mold Hydraulic Clamping
One-click release for all molds; Insert molds from the side; Anti-fall structure.
Basic mold clamping
Provides basic mold clamping functions
About CNC System (Optional)

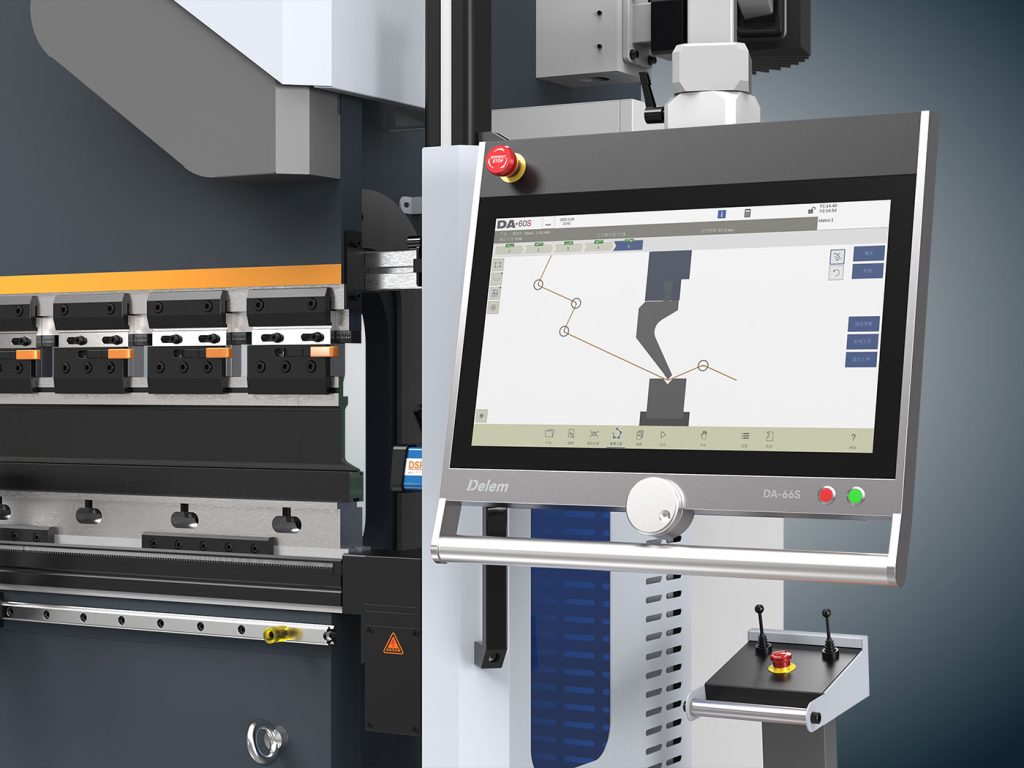

DA-66S
● Brand new 24-inch smart screen, 1920×1080 resolution, larger display for clearer visuals.
● Full touch infrared operation, panel equipped with an emergency stop button.
● 2GB memory, with 3D graphics acceleration for smooth performance.
● 2D touch-based graphical programming, 3D product graphics simulation display.
● Automatic bending process calculation and collision detection function.
● Workshop control and work list functions.
● Dual USB peripheral interfaces with flashing storage drive support.
● Supports multiple languages and can switch to imperial units.
● Profile-SL offline programming software.
Optional User Features:
● Material handling control
● X1-X2 angle programming
● Barcode reader interface
● Angle detection sensor interface
● Machine tool deformation compensation
● Angle gauge interface
● Sheet thickness detection and system compensation● DXF file import
● ACP (external control panel)
● Industry 4.0 interface (OPC-UA interface).

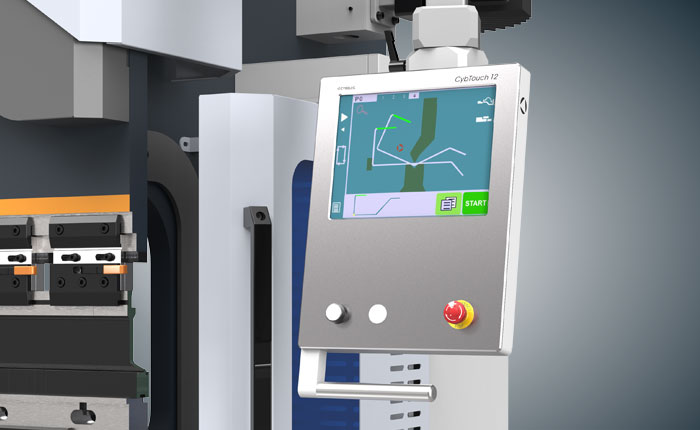

CybTouch 12
●Large touchscreen, bright colors, high contrast.
●Convenient interface, clear display, and large icon buttons.
●Intuitive and user-friendly human-machine interface.
●Comprehensive programming can improve efficiency in batch multi-step bending.
●Single-step bending on the page is very convenient.
●Online help and pop-up tips make the software interface very user-friendly.
●Multiple automatic calculation functions for bending sequences.
●Can store multi-step bending sequences and products.
●Angle, pressure, and compensation control.
●Easy manual control.
●Controls 4 axes (6-axis function optional).
●Manually draw 2D bending graphics (optional).
●Automatic calculation allowed for bending.
●Automatic calculation for pressure compensation.
●Modular settings for each step or bend.
●Angle and back gauge correction.

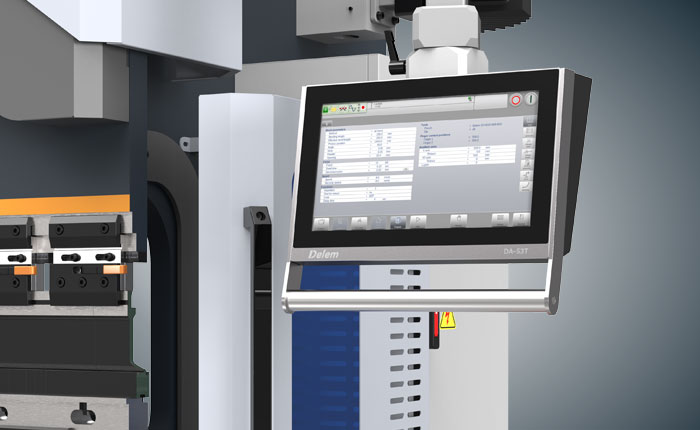

DA-53TX
● 15.6-inch full-color high-brightness LCD widescreen.
● 1366*768px high-resolution display with shortcut touch keys.
● Internal storage capacity of 1GB.
● Up to 4-axis control (Y1, Y2, X, R axes).
● Deflection compensation control.
● Equipped with mold/material table product library.
● Supports servo and variable frequency control.
● Advanced axis control algorithms, capable of controlling both closed-loop and open-loop valves.
● Supports multiple languages and can switch to Imperial units.
● Profile-53TL offline programming software.
User options:
● 2D touch graphical programming (optional).
● Network dual-machine linkage (optional).
● Network interface (optional).

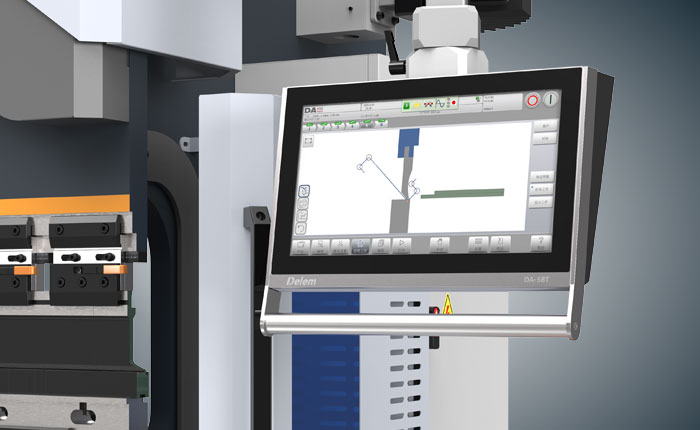

DA-58TX
● 2D graphics touch programming
● 18.5″ high-resolution TFT color display
● 1366*768px high-resolution display, shortcut key touch
● 1G internal storage capacity
● Up to 4-axis control (Y1, Y2, X, R axes).
● Automatic calculation of bending process
● Deflection compensation control
● Product library with mold material list
● Supports servo and inverter control
● Advanced axis control algorithm, can control both closed-loop and open-loop valves
● Offline programming software
User options:
● Angle detection sensor interface (optional)
● Network dual-machine linkage (optional)
● Network interface (optional)
About Safety Protection (Optional)

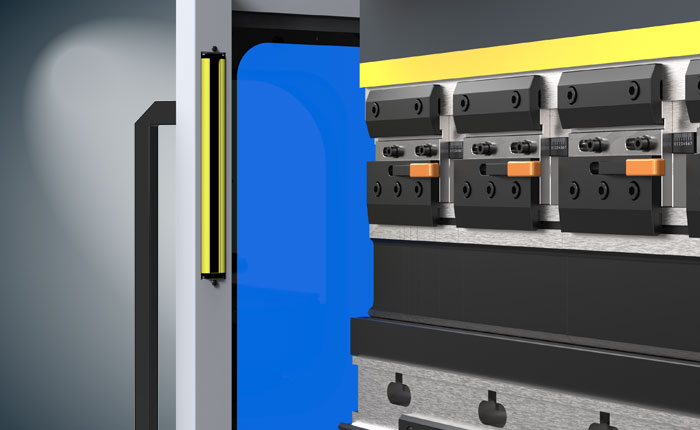

Safety light curtain
A relatively basic form of protection, where the machine stops when there is an obstruction.

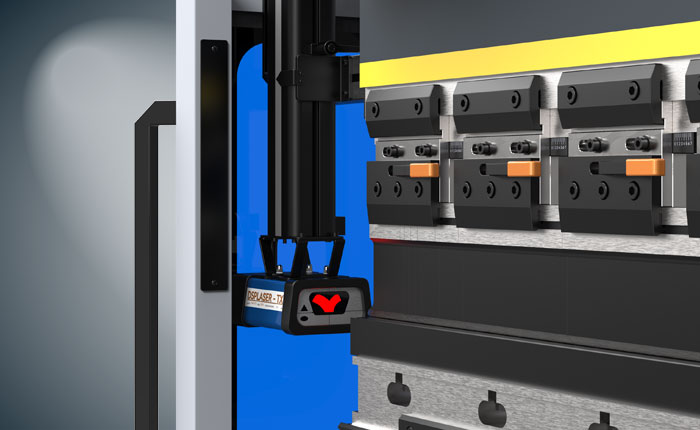

DSP Laser Protection
More advanced protection, the machine stops quickly when there is an obstruction.

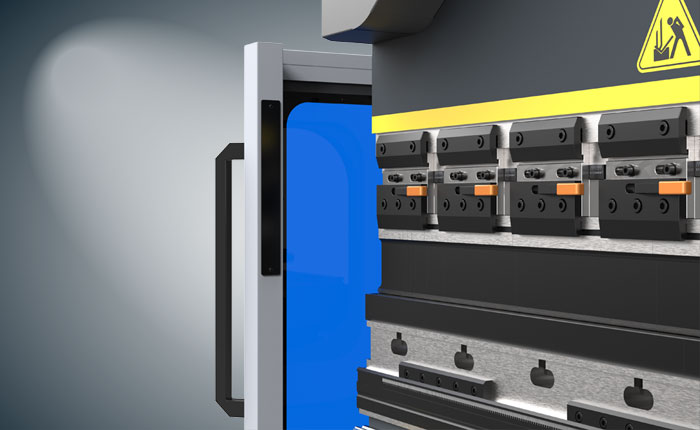

Guardrail only
Basic Protection
About CNC Back Gauge (Optional)

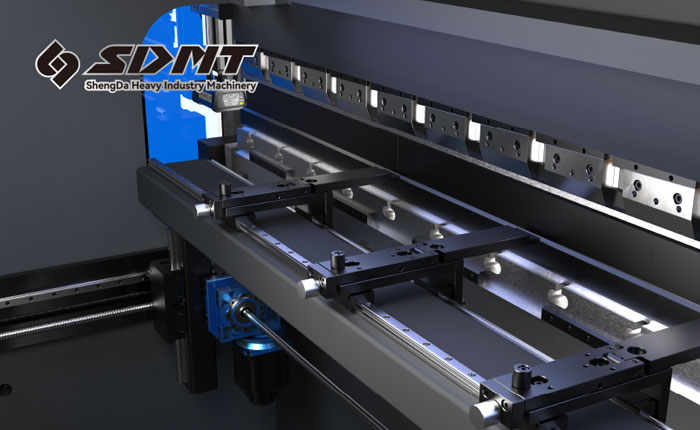

4+1+2-Axis Back Gauge
(Y1+Y2+X+R)+(V)+(Z1+Z2)

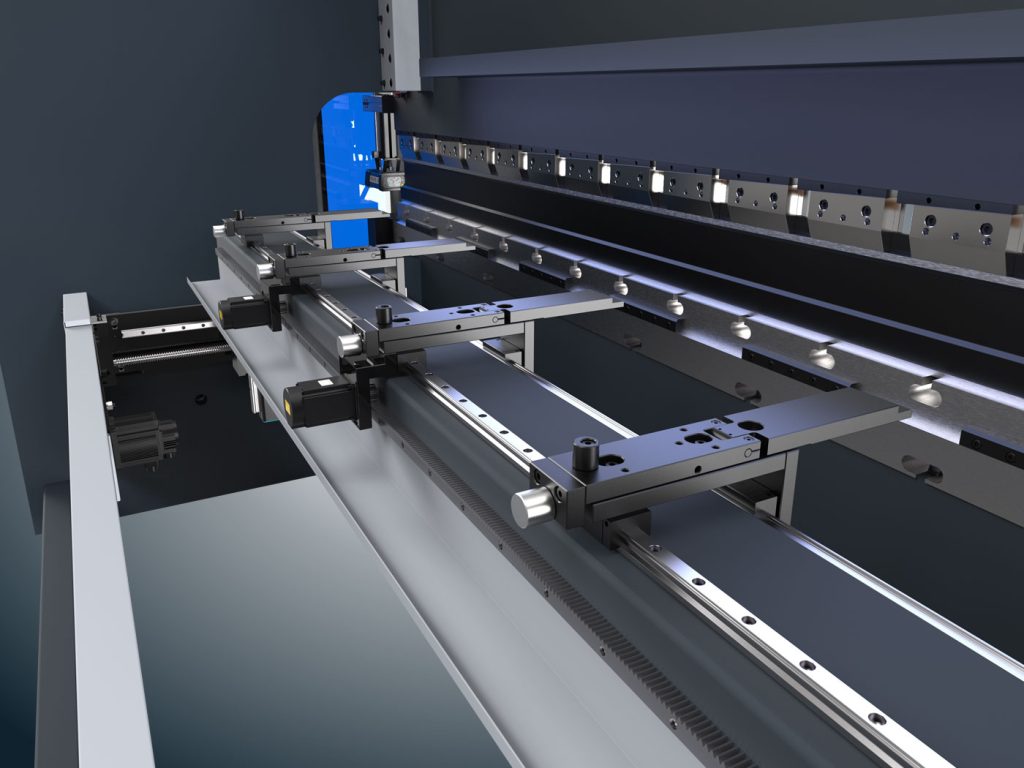

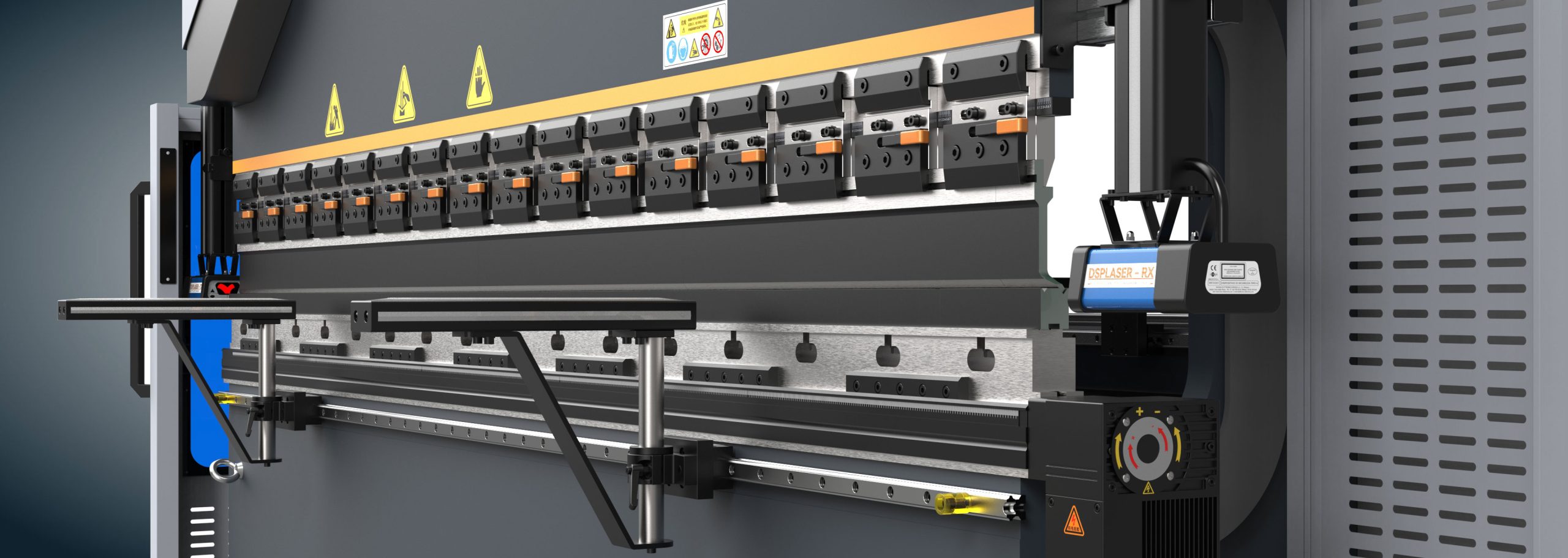

The X-axis back gauge is composed of left and right rail seats, beams, adjustment seats, supports, adjustable supports, seat plates, adjustment seats, adjustment screws, stop fingers and other parts. The left and right guide rail seats are respectively installed on the inner side of the left and right side plates of the
machine. The servo motor is installed at the front and bottom of the right rail seat. The two ends of the beam are fixed with the connecting blocks on the left and right rail seats. The synchronous belt drives the ball screws on the left and right rail seats to rotate synchronously, and is driven by the nut seat and the ram on the linear guide rail. The beam moves back and forth along the X axis. The control of the X-axis action is realized by the servo motor of the X-axis (see the working principle of the control axis for details).

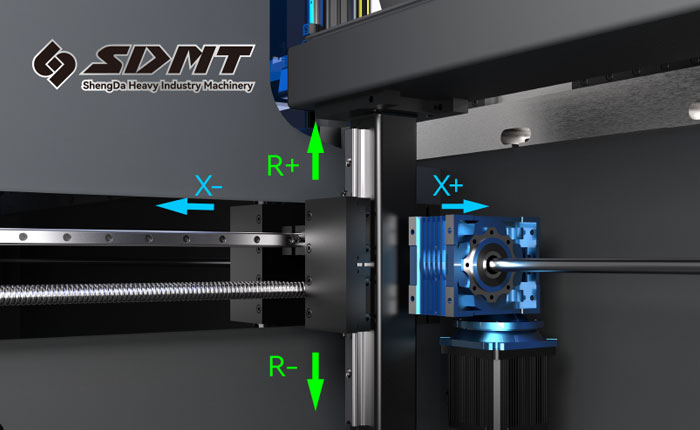

The R-axis back gauge is composed of guide rail seat, R-axis motor and reducer, etc., and drives the beam to move up and down along the linear guide rail through gears, racks and linear guide rails. The control of the movement of the R axis is realized by the servo motor of the R axis.
Double Linear Guide Rail
CNC X-axis and R-axis

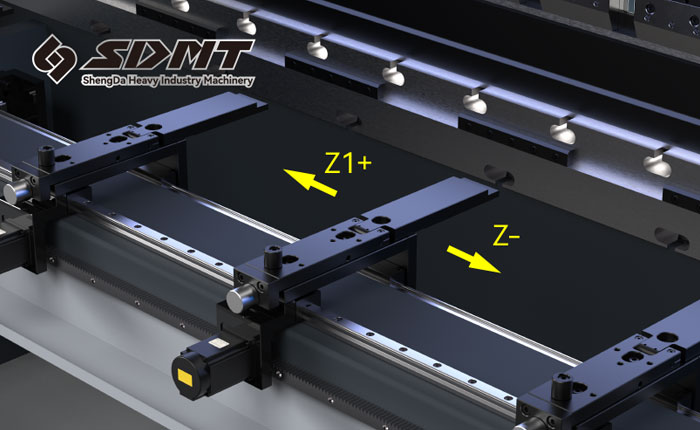

Rear Wiper Motor (Optional)
About Hydraulic System (Optional)

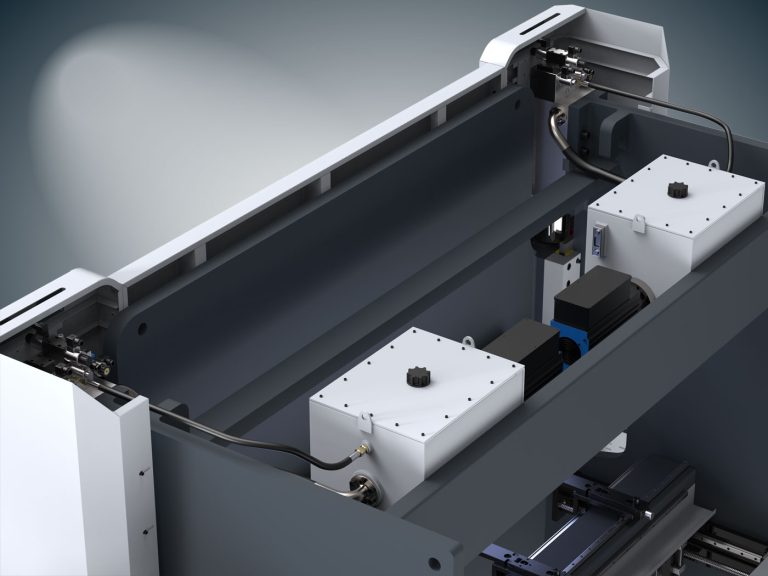

CNC Hybrid-Electro Double Servo Systems

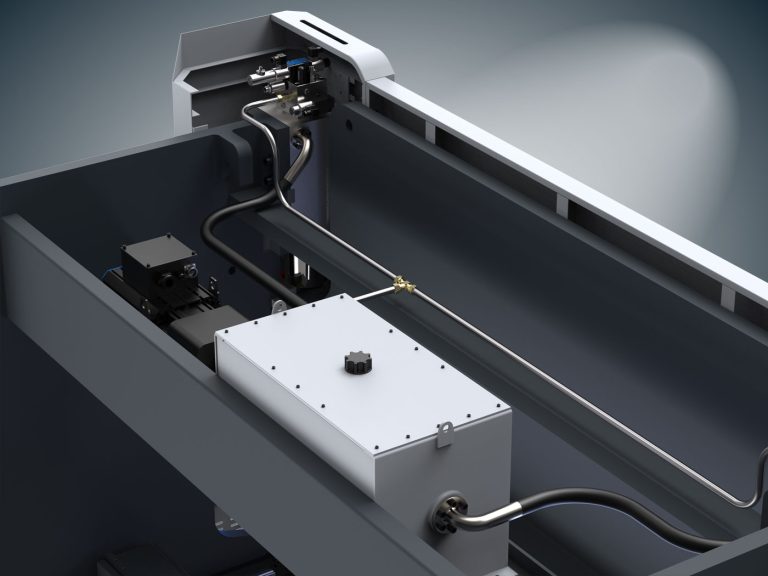

CNC Hybrid-Electro Servo Systems
About CNC Back Gauge (Optional)
